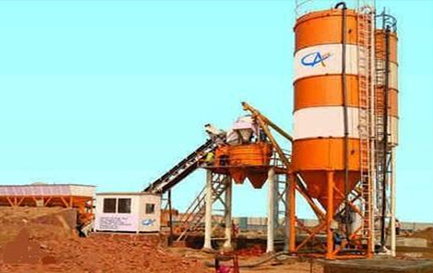

Akona Iap—Series Batching And Mixing Plant
Technical Features
- PLC operated completely automatic control panel (Pan Type)
- Blade mixing technology with planetary gear-boxes.
- Electronic weighing system for better accuracy in design-mix.
- Italian screw feeder, to pour cement speedily.
- Password locking facility.
- Water and ad-mix pour by weight.
- Pneumatically operated gate for aggregate & sand.
- Three Bin Feeder with BELT CONVEYOR system for aggregate, sand, etc.
- Italian vibrator.
- Tabulated print out system for each batch without printer.
- No pit required only nominal civil work.
- Control Panel with cabin.
- Hydraulic discharge system.
- Pen drive facilities.
Technical Data
| Technical Data | ||
| Model | IAP - 30 (Inline) | IAP - 45 (Inline) |
|---|---|---|
| Capacity (Cum/Hr.) | 30 | 45 |
| Geo Volume (Cum) | 1.7 | 2.5 |
| RMC Output / Batch | 0.5 M3 | 0.75 M3 |
| % of filling | 40 % | 40 % |
| Batches Per Hour | 60 | 60 |
| Discharge Height Form G.L. | Discharge in TM | Discharge in TM |
| Capacity (8 Hours) | 240 M3 | 360 M3 |
| Storage Bin Feeder | 3 Nos. | 4 Nos. |
| Discharge Gate Opening System | Hydraulic | Hydraulic |
| Power Consumption | ||
| Mixer Motor | 30 Hp. | 40 Hp. |
| Skip | 15 Hp. | 20 Hp. |
| Screw Feeder Motor | 15 Hp. | 15 Hp. |
| Bin Feeder Motor | 10 Hp. | 15 Hp. |
| Water Pump | 3 Hp. | 5 Hp. |
| Compressor Motor | 3 Hp. | 5 Hp. |
| Chemical Motor | 1 Hp. | 1 Hp. |
| Vibrator’s | 2 x 0.5 Hp. | 2 x 0.5 Hp. |
| Power Pack Motor | 3 Hp. | 3 Hp. |
| Net Consumption | 81 Hp. | 105 Hp. |
| Power Supply | 415 x 3 Ø 50 Hz. | 415 x 3 Ø 50 Hz. |
| Recommended D.G. Set | 110 KVA | 125 KVA |
