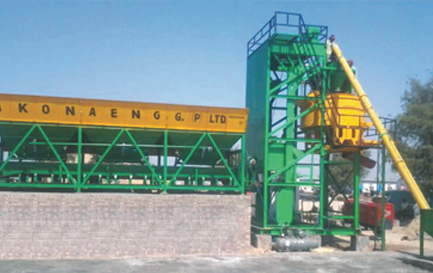

Akona Tss / Pms - Series Batching And Mixing Plant
TSM PMS Series is dedicated to concrete batching and mixing plant with Twin Shaft Mixing. This is the economical series having the benefits of Twin Shaft Mixing Technology with Low-Pollution, Fast mix ad low noise are the basic features that makes it special. This plant is available in two models: TSM-30 (Output 30M3/ Hr)
Technical Features
- Twin Shaft Mixing technology with.
- PLC operated completely automatic control panel.
- Electronic weighing system for better accuracy in design-mix.
- Separate weighing system for cement and fly-ash.
- ltalian screw feeder ,to pour cement speedily.
- Password locking faciliry.
- Water and ad-mix pour by weight.
- Pneumalically operated gate for aggregate & sand.
- ltalian vibrators.
- Tabulated print out system for each batch.
- No pit required only nominal civil work.
- Heat proof control cabin.
- Cement silo with vertical screw feeder (optional).
- Hydraulic discharge system.
- Pen drive support available
| Technical Data | ||
| Model | ATS-20 | |
|---|---|---|
| Mixer Unit | Pan Mixer | |
| Geomatrical Volume | 1 M3 | |
| Rmc Output/Batch | 0.35 M3 | |
| Filling % | 35% | |
| Batch / Hour | 60 | |
| Discharge Height | Discharge In Pump | |
| Capacity (8 Hours) | 160 | |
| No. Of Cycles / Hr | 60 | |
| Number Of Compartment | 2 NOS. 2/4 | |
| Power Consumption | ||
| Model | ATS-20 | |
|---|---|---|
| Mixer Motor | 25 HP | |
| Slinger Conveyor | 5 HP | |
| Gathering Conveyor | 7.5 HP | |
| Water Pump | 2 HP | |
| Compressor | 2 HP | |
| Chemical Motor | 1 HP | |
| Power Pack | 2 HP | |
| Vibrator Motor | 0.5 HP | |
| Cement Screw Conveyor | 10 HP | |
| Total HP | 55 HP | |
| Technical Data | ||
| Model | AHP-30 | |
|---|---|---|
| Mixer Unit | Pan Mixer | |
| Geomatrical Volume | 1.7 M3 | |
| Rmc Output/Batch | 0.5 M3 | |
| Filling % | 40% | |
| Batch / Hour | 60 | |
| Discharge Height | Discharge In Pump | |
| Capacity (8 Hours) | 240 | |
| No. Of Cycles / Hr | 60 | |
| Belt Conveyor Length | 1900MM x 800MM x 10MM | |
| Number Of Compartment | 2+2 | |
| Four Bin Feeder Capacity | 20 Cum | |
| Control Panel | Separate (Not Body Mounted) | |
| Screw Conveyor Length(WAM) | 08 Mtr. | |
| Power Consumption | ||
| MODEL | AHP-30 | |
|---|---|---|
| MIXER MOTOR | 30 HP | |
| Slinger Conveyor | 7.5 HP | |
| Gathering Conveyor | 10 HP | |
| Water Pump | 3 HP | |
| Compressor | 3 HP | |
| Chemical Motor | 1 HP | |
| Power Pack | 3 HP | |
| Vibrator Motor | 1 HP | |
| Cement Screw Conveyor | 12.5 HP | |
| Total HP | 71 HP | |
