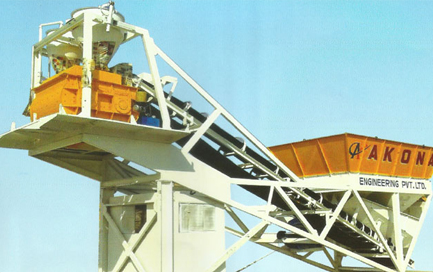

Akona Tsm Series Batching And Mixing Plant
TSM Series is dedicated to concrete batching and mixing plant with Twin Shaft Mixing. This is the economical series having the benefits of Twin Shaft Mixing Technology Low~Pollution, Fast mix and low noise are the basic features that makes it special. This plant is available in two model :TSM-30 (Output GUM3/Hr)
Technical Feature:
- PLC operated completely automatic control panel.
- Mixingtechnologywith Twin ShattMixer.
- Electronic weighing system for better accuracy in design- mix.
- Separate weighing system forcement and fly-ash.
- Italian screwfeeder, to pour cementspeedily.
- Password locking facility.
- Waterand ad-mix pourbyweight.
- Boom scrapperto make you workeasier.
- Pneumatically operated gatefor aggregate & sand.
- Italian vibrators.
- Tabulated printout system lor each batch.
- No pit required only nominal civil work.
- Heat prootcontrol cabin.
- Cement silo with vertical screwieeder (optional).
- Hydraulic discharge system.
- inbuilt memorytor data storage upto 8 GB
- Pen dnve support available
| Technical Data | |
| Model | TSM - 30 |
|---|---|
| Mixer Unit | Twin Shaft |
| Geo Volume (Cum) | 1.7 M3 |
| RMC Output / Batch | 0.5 M3 |
| % of filling | 40 % |
| Batches Per Hour | 60 |
| Discharge Height | Discharge in TM |
| Capacity (8 Hours) | 240 M3 |
| No. of cycles / hr | 60 |
| Cement Scale | 500 Kg |
| Water Batching | 350 Kg |
| Water Scale | By Weight |
| Aggregate Batching | By Weight |
| Add-Mix Batching | By Weight |
| Number of Compartment | 2 NOS. 2/4 |
| Total Plant Lenth | 11 Mtr |
| Plant Height | 4.5 MTR |
| Slinger Conveyor (V-Group) | |
| Gathering Conveyor | 800 X 21000 MM |
| Air Compressor | 180 LTR |
| Power Consumption | |
| Mixer Motor | 30 Hp. |
| Gathering Conveyor | 15 Hp. |
| Water Pump | 3 Hp. |
| Compressor | 3 Hp. |
| Chemical Motor | 1 Hp. |
| Power Pack | 3 Hp. |
| Vibrator Motor | 1 Hp. |
| Cement Screw Conveyor | 12.5 HP. |
| Net Consumption | 68.5 Hp. |
